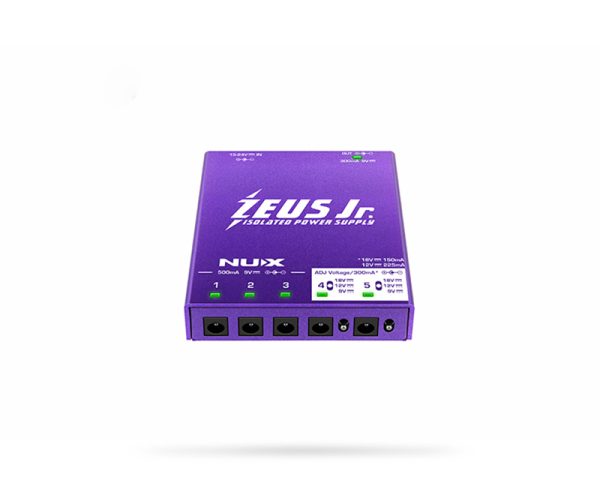

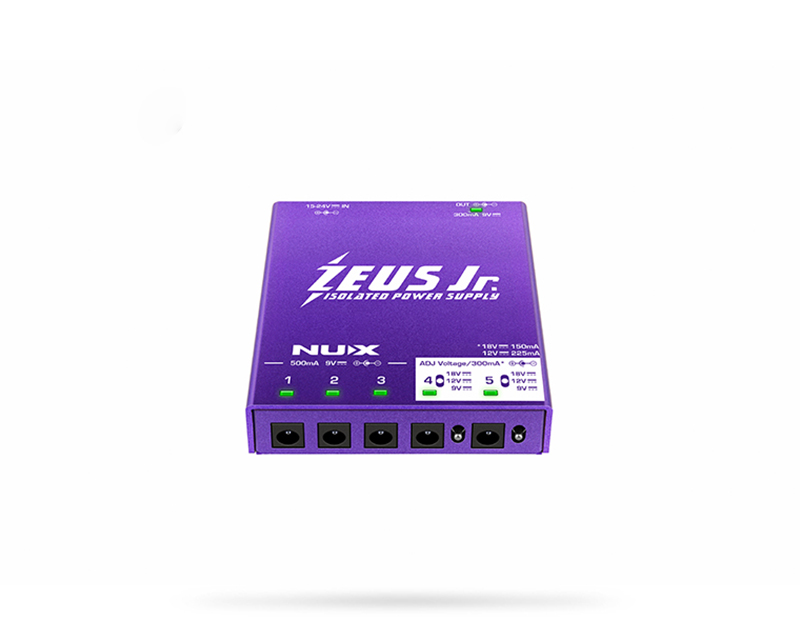

ZEUS Jr. (NIP-Z6)

Rp1.732.500

SKU : NIP-Z6 NIP-Z6 Category Accessories Brand: NUX

Background

As an innovative musical instrument brand, NUX has built several well-known pedals and multi-effects. And for users who use high gain distortion pedals, finding an adequate power supply tends to be a headache. While a DC daisy-chain can drive several pedals, the combination of analog and digital pedals on a single chain can result in annoying ground noise. So, we set out to build a reliable, extreme-low-noise, lightweight, universal, high current, all-isolated power supply.

While doing our research, we found that many manufacturers used “toroidal transformer” in their power supply solutions, which while they can over clean power, the trade off in efficiency, weight, and size led us to find a better solution, which we call Zeus.

Concept

Zeus was the Greek god of the sky and thunder with his most famous power being the ability to throw lightning bolts. That’s why we named our new power supply ~ ZEUS Jr. ZEUS Jr. provides 6 high current isolated DC power outputs. Included are 6 isolated switching power transformers, offering a clean and stable power source for your pedals. These days, guitarists like to integrate digital post effects like Eventide®, Strymon®, …etc. So, ZEUS Jr. comes with 4 outputs (9V/500mA*3 | 9V/300mA*1) and 2 adjustable high current outputs (9V/300mA | 12v/225mA | 18v/150mA). This enables you to use your favorite Fuzz or Phaser with the adjustable output to find the best sound.

ZEUS Jr. is a reliable, extremely low-noise, lightweight, universal power, high current, all-isolated power supply.

Unique Features

Efficient Energy (Reliable)

ZEUS Jr. is significantly more efficient than linear power supplies.Our engineers tested the output efficiency of ZEUS Jr. with different input voltages. The average output efficiency is 76.7% with 15V input, and 77.3% with 24V input.

Noise-free with different kinds of pedals

When working with low currents pedals or high currents DSP pedals, ZEUS Jr, handles it well with extremely low noise.

Pedalboard-friendly size

ZEUS Jr. comes with a small and lightweight housing, making it effortlessly mountable underneath virtually any pedalboard.

Self-Regulated Output

Ultra Low Impedance

Unlike other switching power supplies, which use multi-stage filtering to eliminate the noise. The self-regulated output design of ZEUS Jr. has ultra-low impedance that offers you clean power and retains great dynamics!

15-24V DC in with anti-reverse connection.
4 high-current, fully isolated 9V outputs with center-negative polarity.
500mA per 9V DC output powers nearly any pedal(except one provides 300mA).
2 selectable outputs offer 9V, 12V, or 18V DC options (9V/300mA | 12V/225mA | 18V/150mA).
6 pedal cables, 15V power adapter, and IEC cable included.
Dimensions: 90(L)x88(W)x24(H)mm
Weight: 184g
