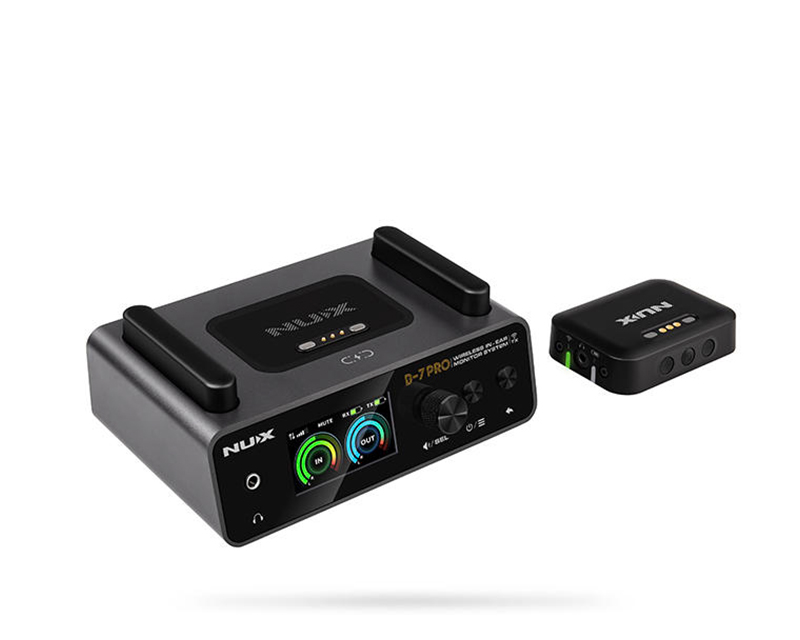

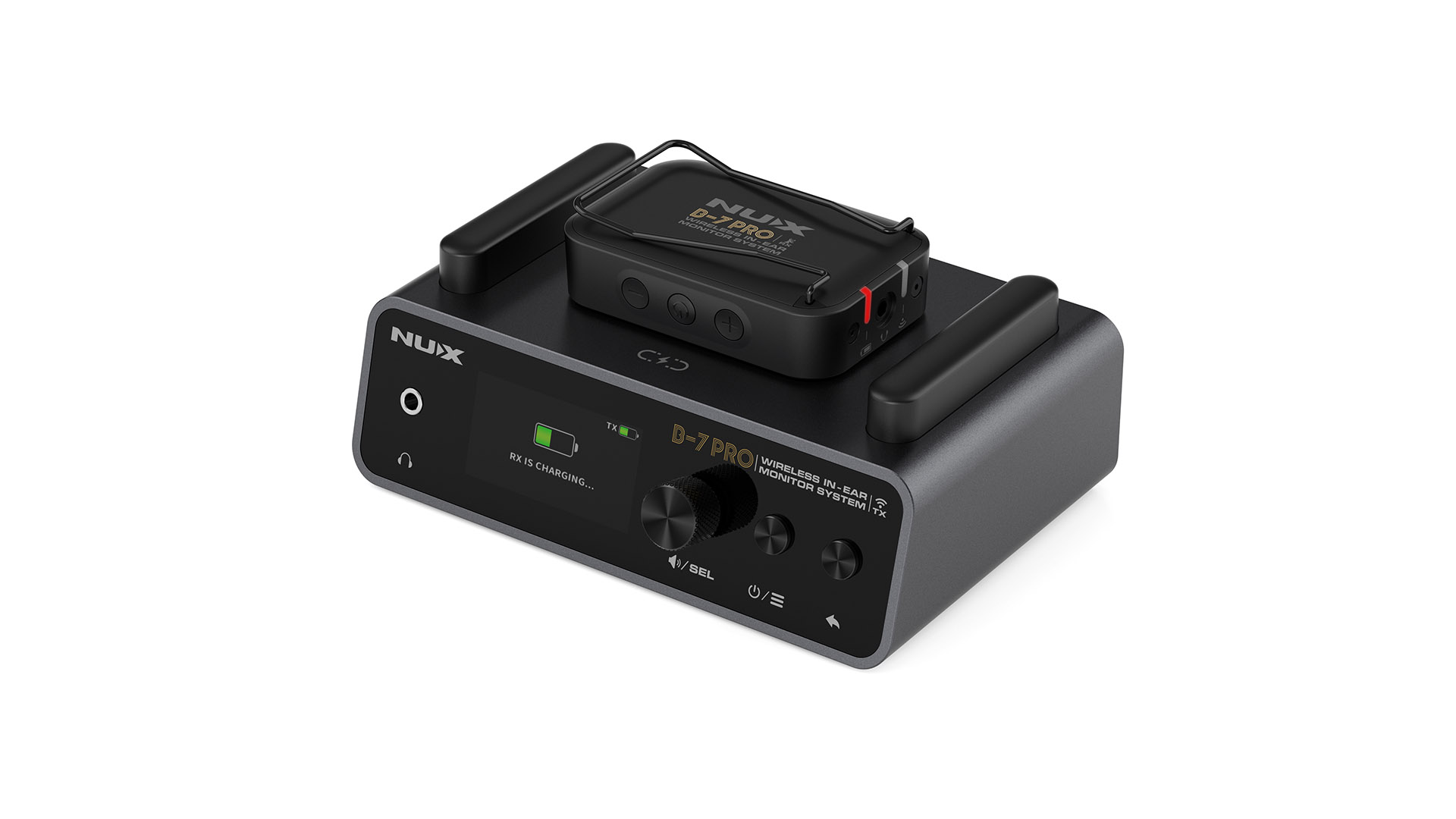

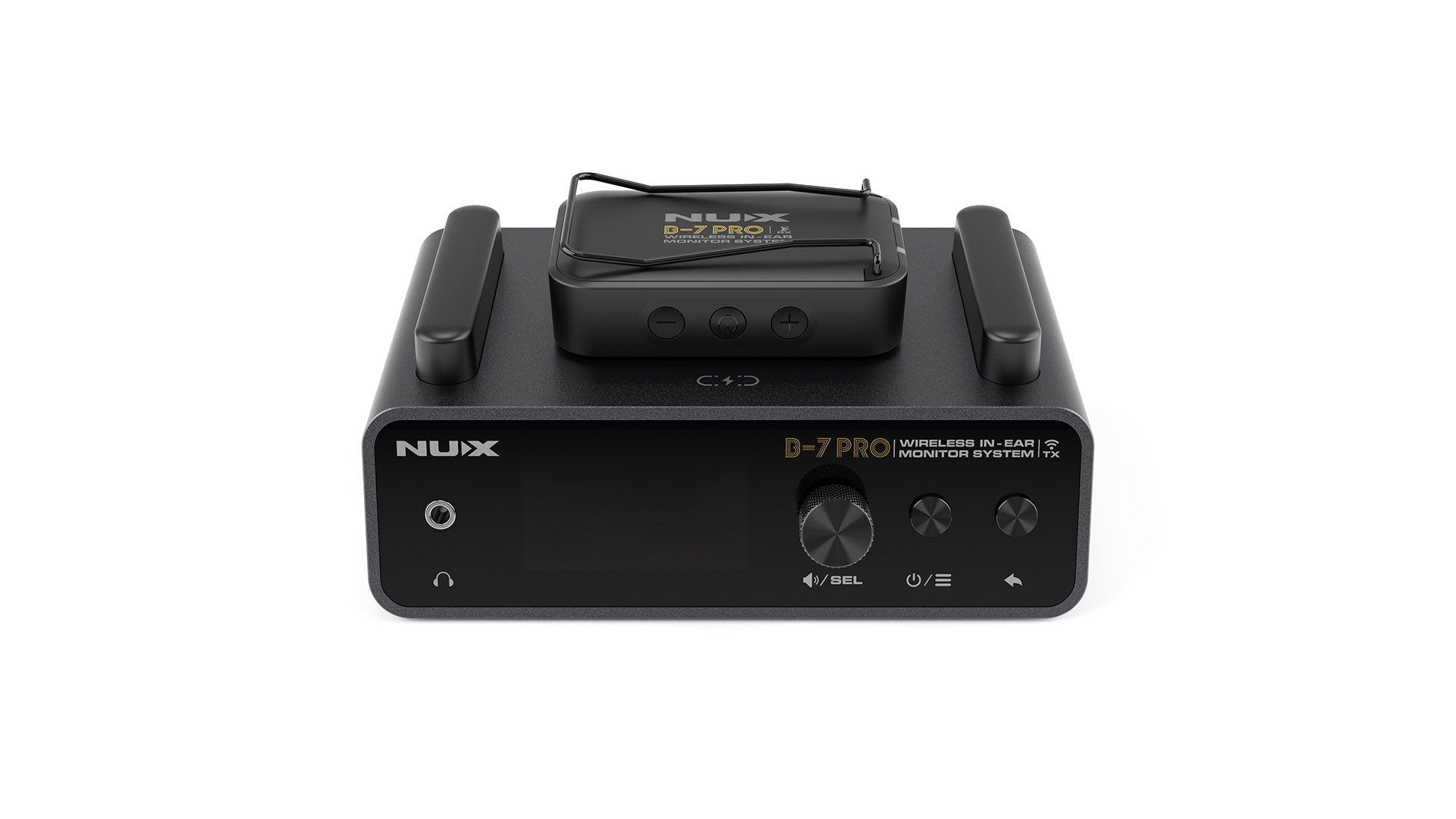

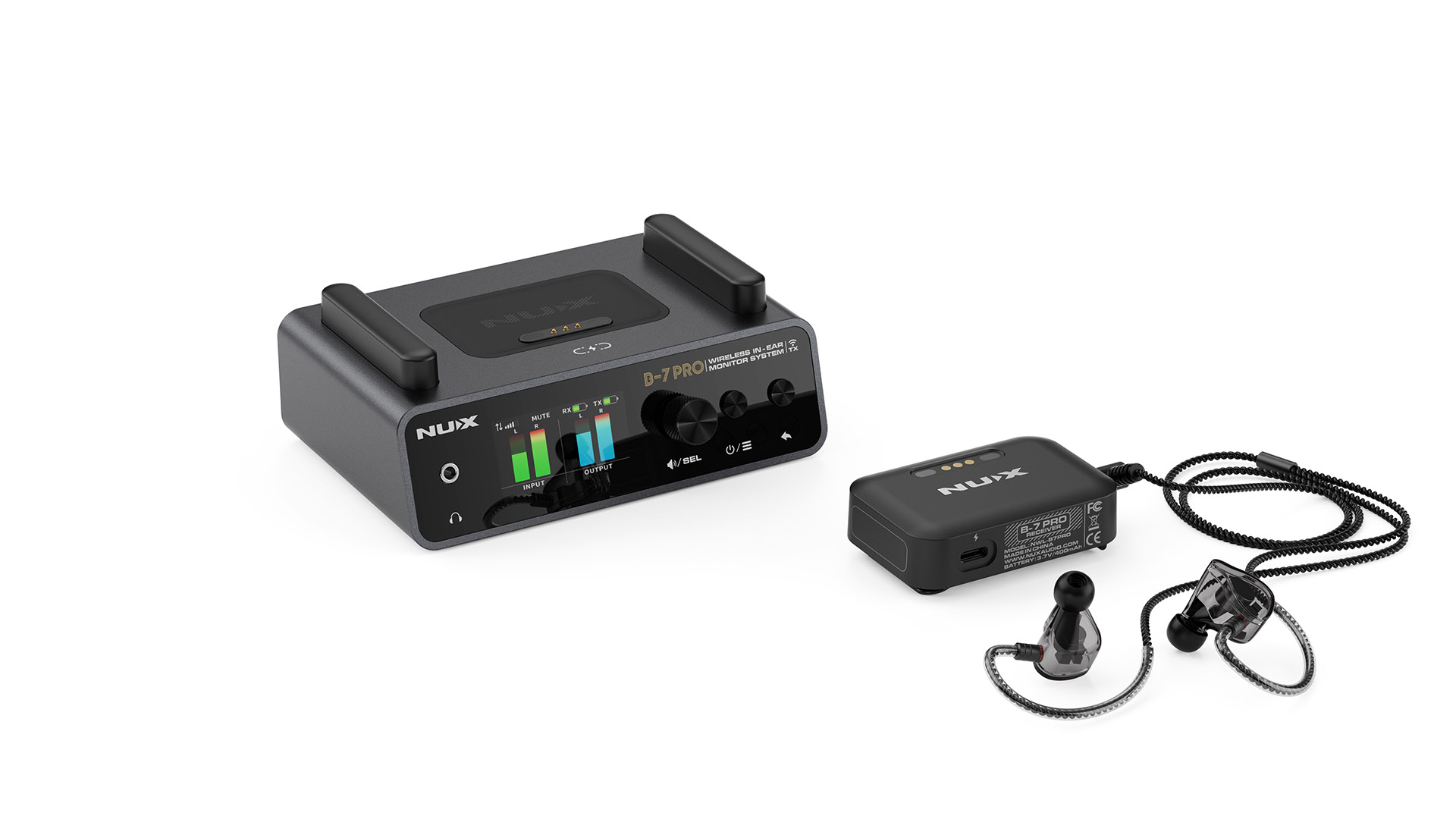

B-7 PRO
Rp5.040.000
Wireless In-Ear Monitor System
- Operating FrequencyBand: 2400-2483.5MHz
- Transmit Mode: Frequency Hopping
- RF Output Power: 10mW E.l.R.P. max
- Audio Quality: 24bit/48kHz
- Frequency Response: 20Hz-20kHz
- Latency: 7.33ms(low latency setting)-10.85ms(default)-14.33ms(safe setting)
- Unbalanced Input lmpedance: 10kΩ
- Balanced Input lmpedance: 20kΩ
- AUX Input Level: 2.1 Vrms(8.7dBu) max
- Balanced Input Level: 9.8 Vrms(22dBu)max
- Headphone output Impedance: Minimum 13Ω
- Headphone Maximum output power per channel: 57mW (THD<0.1% RLOAD=16Ω,1kHz)
- Channel separation: -105dB
- THD+N: <0.01% typical
- Dynamic Range: 110dB A-weighted
- Output level Adjustment Range: Mute -86dB~+12dB
- Auto-0ff: It automatically turns off after 10 minutes of no connection or if the connection is lost
- Built-in Battery Capacity: Rechargeable Li-polymer (Transmitter 3.7V/3000mAh, receiver 3.7V/400mAh)
- Battery Lifetime: TX: Up to 6 hours/ RX: Up to 6 hours
- Power Requirements: DC 9V, 1A min, negative tip power supplies(Transmitter)
- Operation Range: Up to 50m (165 feet) maximum

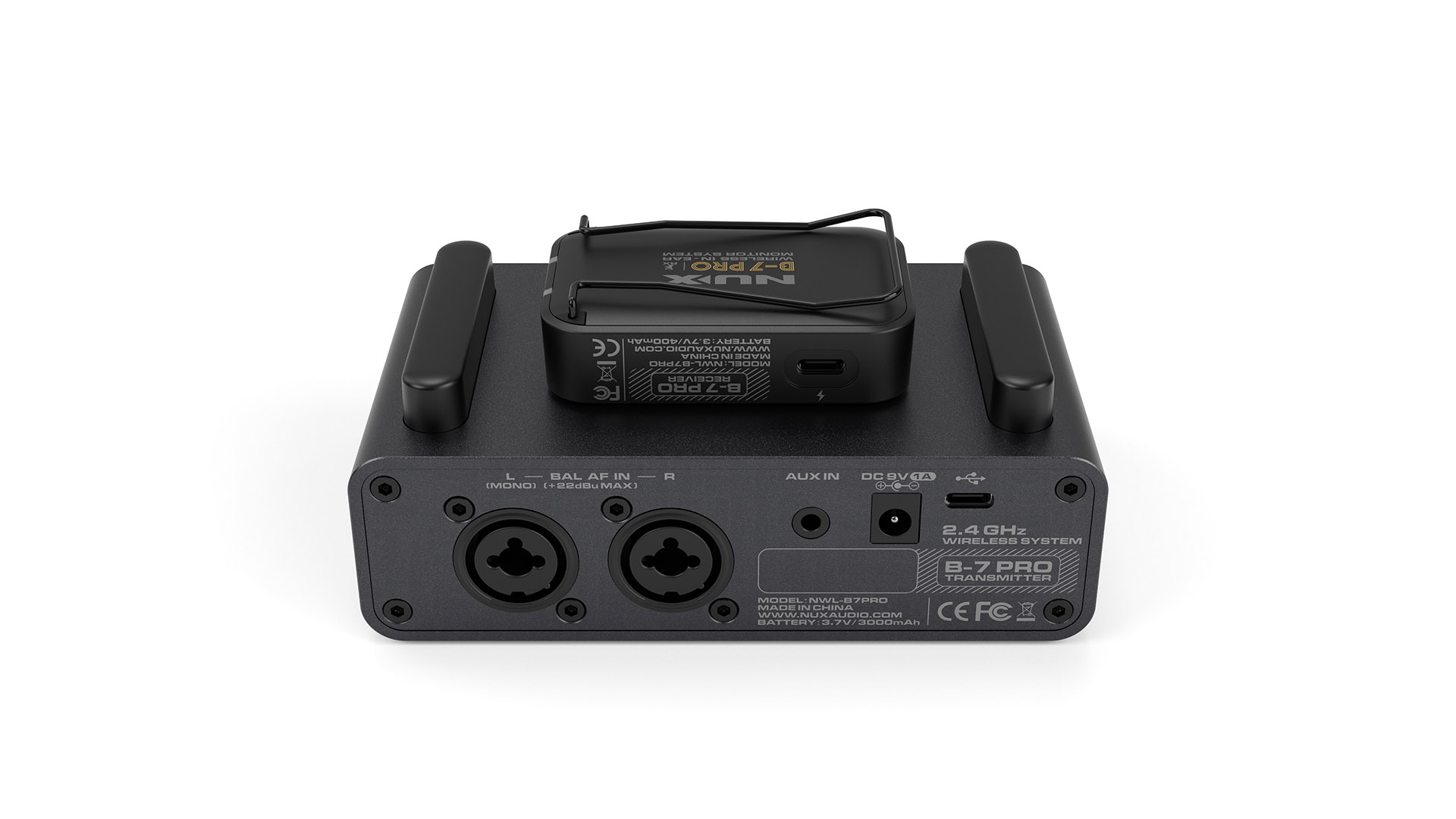

- TX Dimesions: 140mm*97mm*53mm (L*W*H)
- TX Weight: 525g

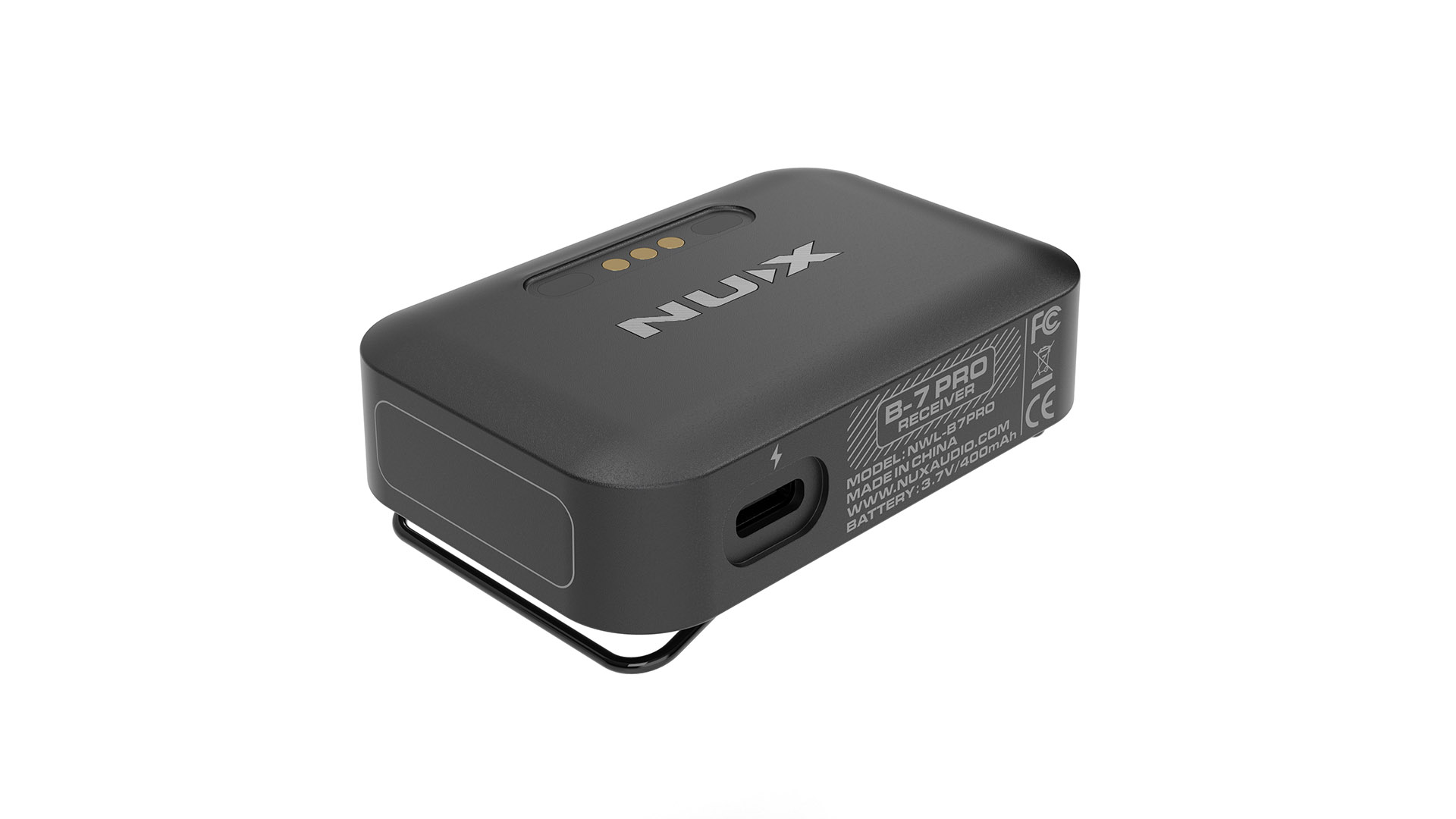

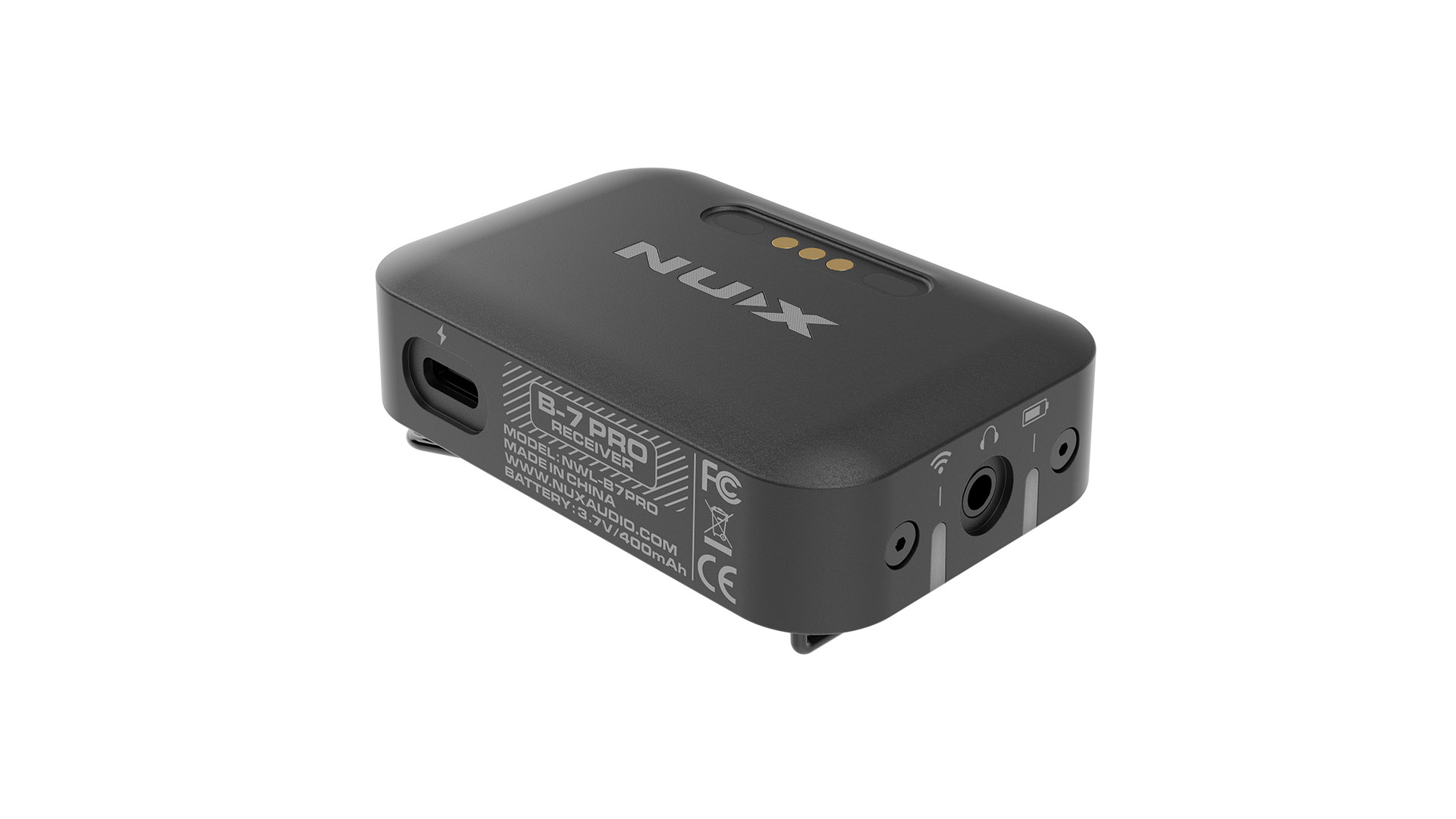

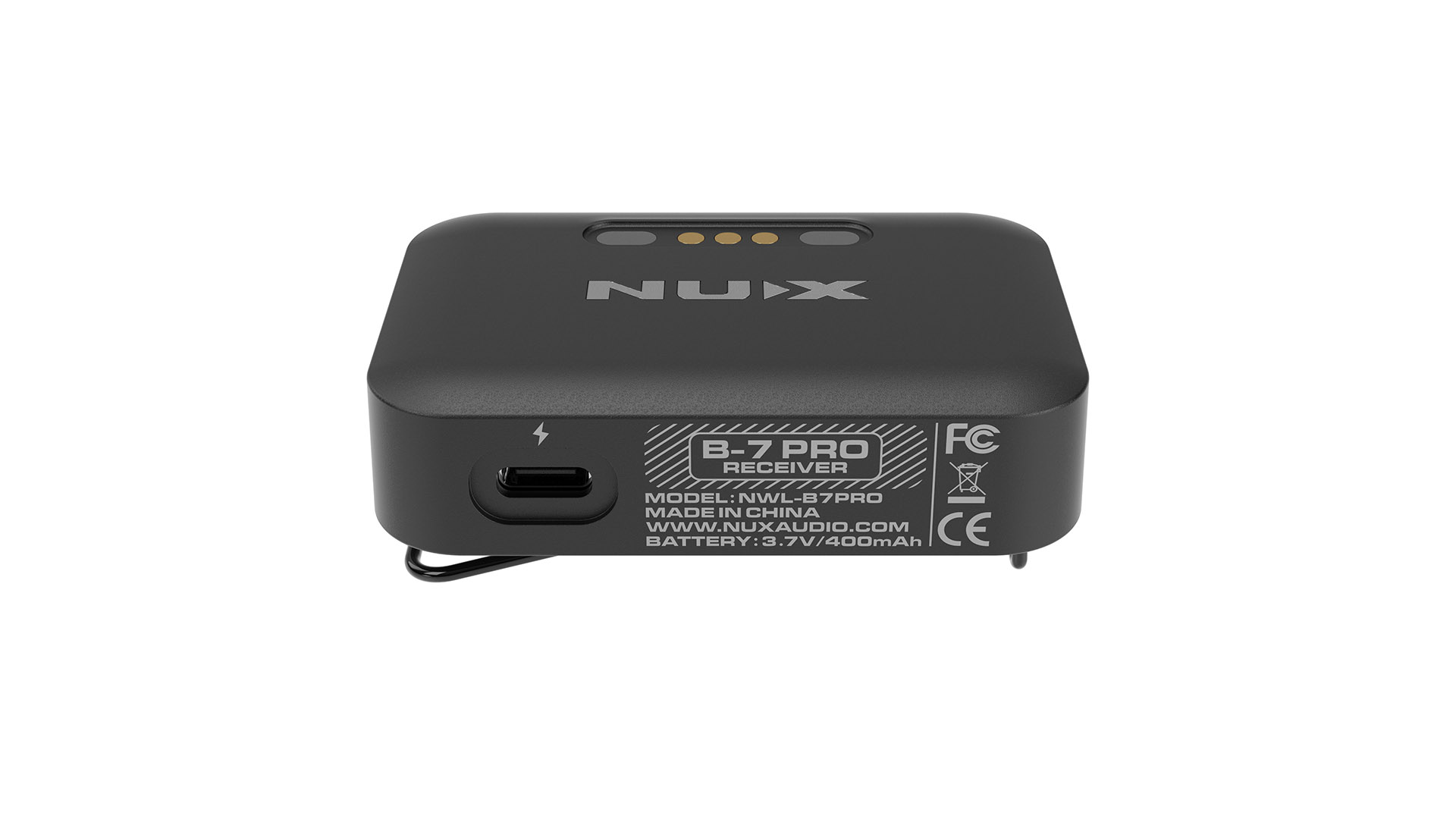

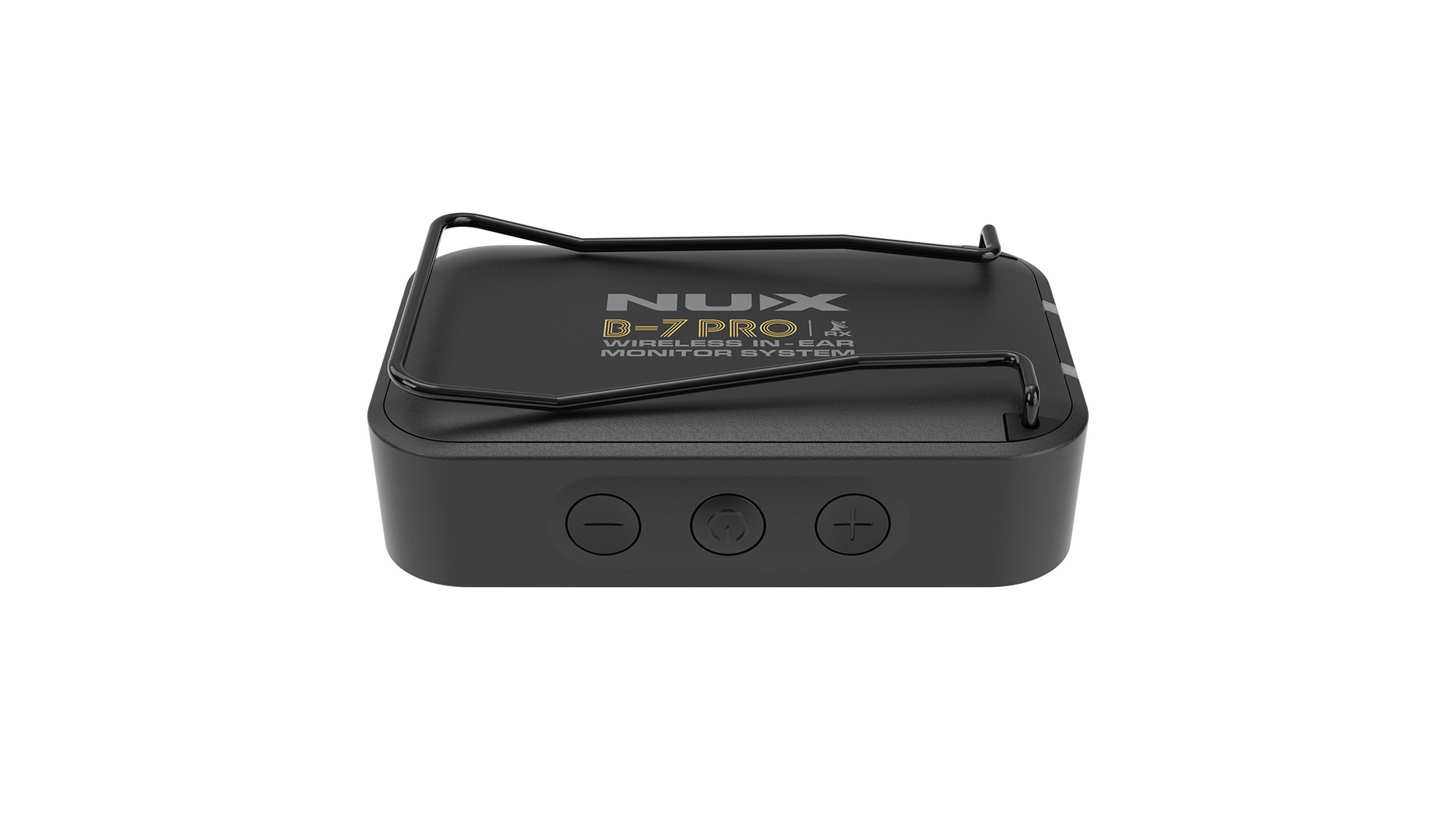

- RX Dimensions: 47mm*71mm*22mm (L*W*H)
- RX Weight: 51g
Manuals
Related products
-
B-8
Professional wireless Redefined! NUX B-8 is a redefined wireless system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality audio transmitting. The signal transmitting latency is as low as 2.5ms at the best performance. The operation…
-
B-1 LITE
2.4GHz Guitar Wireless System
-

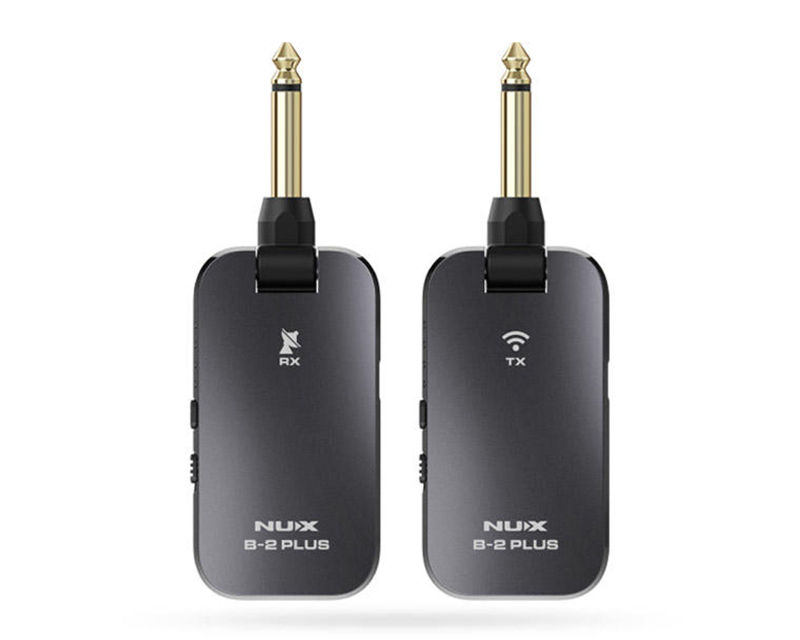

B-2 PLUS
