AXON3

Category Audio Brand: NUX

Take Studio-quality Sound Wherever You Go!

Compact Size, Uncompromising Sound

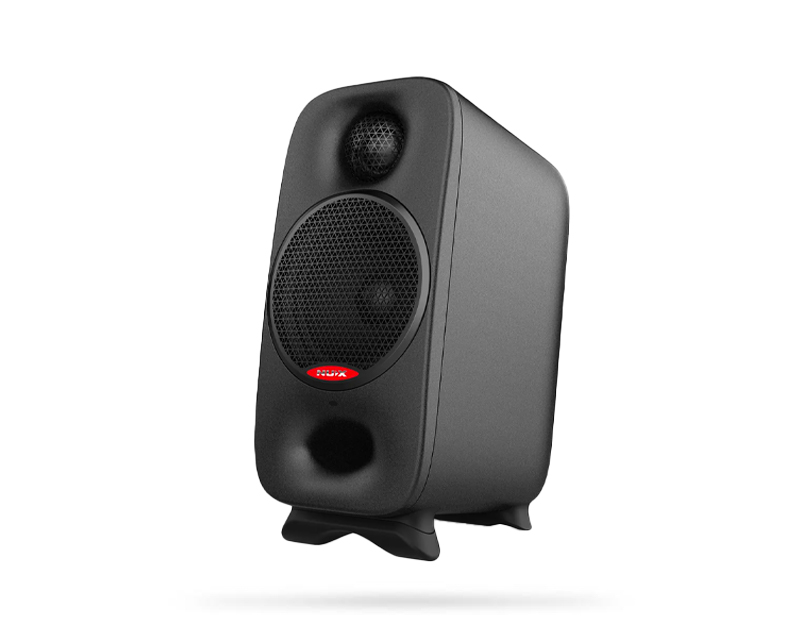

Take your sound to the next level with the NUX AXON 3, a professional-grade ultra-compact studio reference monitor designed for precision, clarity, and versatility. Whether you’re mixing, mastering, producing, or streaming, AXON 3 delivers exceptional audio performance in a portable, backpack-friendly size.

90W Bi-Amp Power with 3″ Woofers

Four Class-D amplifiers drive each speaker independently for maximum efficiency, delivering 90W RMS power for a clean, dynamic, and highly detailed sound. Two 3-inch neodymium woofers with bass ports reach down to 55Hz, while two 3/4-inch silk dome tweeters provide crisp highs.

Advanced DSP and Acoustic Correction EQ APP

Flexible Audio I/O

The AXON 3 offers a wide range of connectivity options, including USB DAC for high-quality digital audio input, Bluetooth streaming for wireless convenience, 1/4″ stereo inputs for versatile instrument connections, RCA for compatibility with vinyl or other audio systems, and 1/8″ AUX for easy integration with mobile devices or external audio sources. Whether you’re working in the studio or on the go, it ensures seamless connection to all your audio sources.

* For included accessories, please refer to the user manual.

Magnetic Footpads & 3/8″ Mounting Socket

The AXON 3 features two magnetic footpads with adjustable tilt angles of +9° and -5° to direct sound precisely to your ears while minimizing desk vibrations. The bottom also includes a 3/8″ female socket for secure mounting on any microphone or speaker stand, offering flexible placement options.

Studio-Grade Performance Anywhere

The AXON 3 delivers professional sound in any environment. Its compact size, lightweight design, and included carrying bag make it ideal for music production, composing, video editing, live streaming, and more—ensuring exceptional sound quality and precision wherever you go.

Type: Bi-amp 2-way powered reference studio monitor
Crossover Frequency: 3kHz
Frequency Responses: 55Hz-20kHz (-3dB) 45kHz-22kHz (-10dB)
Tweeter: 3/4-inch silk dome
Woofer: 3-inch neodymium magnet
Enclosure: Specially designed long-guided bass-reflex type
Material : ABS
Max. SPL: 107dB
Number of Amps : 4
Output Power: Total 45W + 45W LF 30W HF 15W
Input Impedance: 10k ohms /-10dBu
Amplifiers Type: Class D
Connectors: 2 x 1/4” TS input 2 x RCA unbalanced input 1 x 1/8” stereo AUX input 4-pin speakers connector
Bluetooth: Bluetooth 5.0 Compatible with AVRCP Profile V1.6, A2DP Profile V1.3 and HFP Profile V1.7
USB DAC: 48kHz 24bits
Controls: Volume control
Built-in DSP acoustic correction EQ, app/software controlled
Dimensions: 204.5(L) x 9.4(W) x 150(H) mm (Single)
Weight: 1.98kg (Pair)
